TAVAS Water Pump DPW20(E)
DPW20(E) DPW30(E) DPW40(E) DPW60(E)
Sewage diesel water pumps are designed to handle the challenging task of pumping wastewater and sewage containing solid particles, debris, and other contaminants. They have powerful pumping capabilities to effectively move large volumes of wastewater, including heavy sludge or thick liquids.
minimum order
30
Quantity

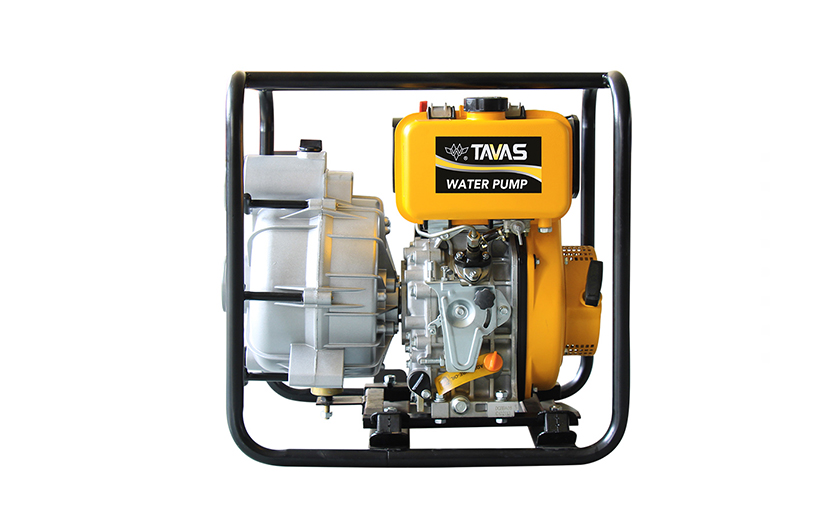

TAVAS Sewage Water Pump DPW20(E)
Sewage diesel water pumps are designed to handle the challenging task of pumping wastewater and sewage containing solid particles, debris, and other contaminants. They have powerful pumping capabilities to effectively move large volumes of wastewater, including heavy sludge or thick liquids.
| Technical data | |||||
| Pump data | DPW20(E) | DPW30(E) | DPW40(E) | DPW60(E) | |
| Type | trash pump | ||||
| Suc.& discharge dia. | mm | 50(2'') | 80(3'') | 100(4'') | 150(6'') |
| Max. lift head | m | 10.0 | 25.0 | 31.0 | 20.0 |
| Suction lift | m | 8.0 | 8.0 | 8.0 | 8.0 |
| Max. flow rate | Lpm | 30 | 45 | 70/96 | 180 |
| Engine data | |||||
| Model | 178F | 186F | 192F | 195F | |
| Bore x stroke | mm | 78×62 | 86×72 | 92×75 | 95×75 |
| Displacement | cc | 296 | 418 | 498 | 531 |
| Nominal speed | rpm | 3600 | 3600 | 3600 | 3600 |
| Starting system | Manual or electric | Manual or electric | Electric | Electric | |
| Lubrication system | Forced lubrication at multiple points | ||||
| Lubrication volume | L | 1.1 | 1.65 | 1.65 | 1.65 |
| Cooling system | Forced air-cooling by fly wheel fan | ||||
| Fuel tank capacity | L | 3.5 | 5.5 | 5.5 | 12.5 |
| Noise level | |||||
| Sound pressure level(Lpa) at 7m | dB(A) | 70 | 71 | 73 | 75 |
| Sound power level(Lwa) | dB(A) | 95 | 96 | 97 | 98 |
| Dimensions | |||||
| L×W×H | mm | 510×420×545 | 565×455×570 | 655×480×620 | 780×540×840 |
| Gross Weight | kg | 68 | 72 | 80 | 90 |

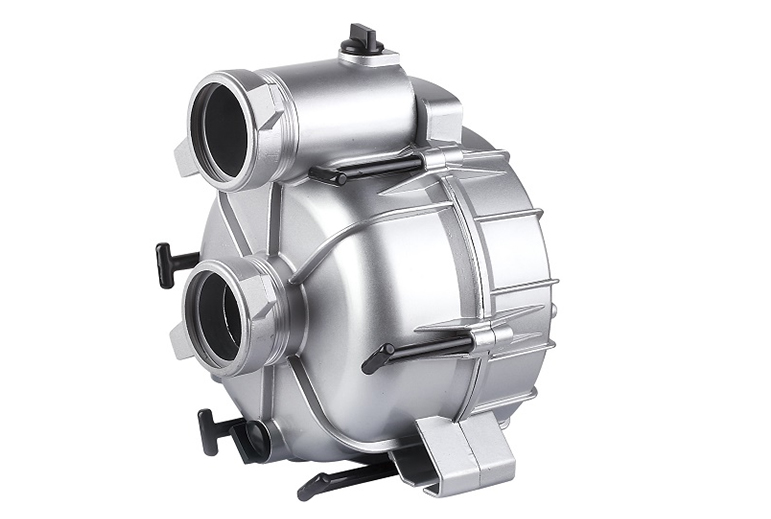

Chemical pump
Special pumps designed for corrosive chemical liquids.
The pump body is made of corrosion-resistan material and coating, which has good sealng and can effectively prevent leakage.
Impeller dynamic balance adjustment for steady flow and power efficiency.
Powered by TAVAS high performance engine.
3000 hours engine service life under proper maintenance.
Nitrided crankshaft with lifetime guarantee.
Top grade bearings at crankshaft, camshaft and balanceshaft, Maximize service life.
Engines fully tested and cleaned before mounted on generators
Products Description
