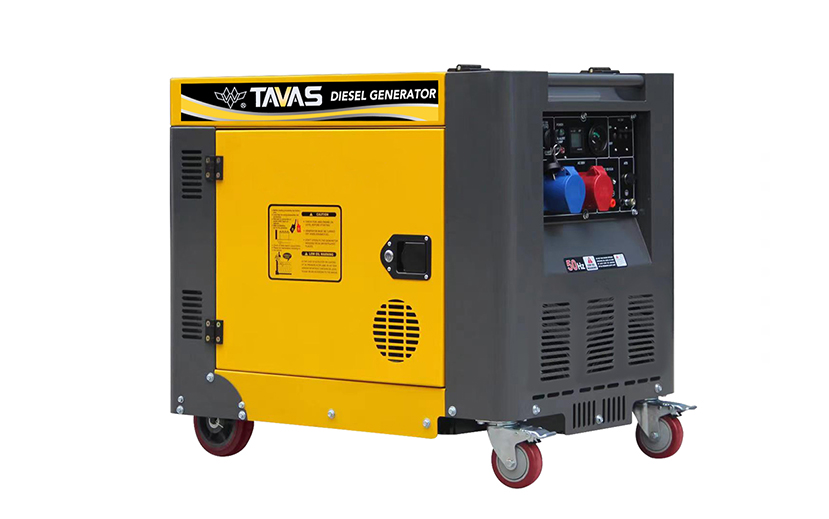

TAVAS 3 kW to 7 kW Diesel Generator E model
DG6500SE-E DG6500SE+-E DG7500SE-E DG8500SE-E DG9500SE-E
TAVAS DG7500SE-E Generator adopts cold-rolling process, oil-based paint reinforced winding, good insulation, low temperature rise, independent installation of AVR and voltage regulator to reduce the working temperature, long life, and more convenient for later maintenance and replacement.
minimum order
30
Quantity
TAVAS DG9500SE-E Generator
The hydraulic top cover is equipped with an anti-theft lock to prevent the tank cover from being opened at will by strangers.
As the control panel is deployed on the side, the two full-size maintenance doors at the front and rear can be opened to allow very easy access and maintenance of the entire generator set.
| Technical data 3-7 | |||||||
| Generator data | DG3500SE | DG6500SE | DG6500SE+ | DG7500SE | DG8500SE | DG9500SE | |
| Peak power | kW | 3.2 | 5.0 | 5.5 | 6.0 | 6.5 | 7.5 |
| kVA | 4.0 | 6.3 | 6.9 | 7.5 | 8.1 | 9.4 | |
| Nominal power | kW | 3.0 | 4.6 | 5.0 | 5.5 | 6.0 | 7.0 |
| kVA | 3.8 | 5.8 | 6.3 | 6.9 | 7.5 | 8.8 | |
| Rated voltage | V | 110 | 127 | 220 | 230 | 240 | 380 | 400 | 415 | |||||
| Rated frequency | Hz | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Fuel tank capacity | L | 16 | 16 | 16 | 16 | 16 | 16 |
| Fuel consumption at 50% load | g/kW.h | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 | ≤280 |
| Engine data | |||||||
| Type | Air-cooled, 4 stroke, diesel engine. | ||||||
| Model | 178F | 186FA | 188F | 188F | 192FC | 195FC | |
| No. of cylinder | 1 | 1 | 1 | 1 | 1 | 1 | |
| Bore x stroke | mm | 78 x 64 | 86 x 72 | 88 x 75 | 88 x75 | 92 x75 | 95 x 75 |
| Displacement | cc | 296 | 418 | 456 | 456 | 498 | 531 |
| Nominal speed | rpm | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Starting system | Electric | Electric | Electric | Electric | Electric | Electric | |
| Lubrication system | Forced lubrication at multiple points | ||||||
| Lubrication volume | L | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 |
| Cooling system | Forced air-cooling by fly wheel fan | ||||||
| Alternator | |||||||
| Type | Pure copper inductive 2 pole alternator | ||||||
| AC voltage control | AVR（automatic voltage regulator） | ||||||
| Insulation class | F | F | F | F | F | F | |
| Protection level | IP23 | IP23 | IP23 | IP23 | IP23 | IP23 | |
| Efficiency | 0.80 | 0.82 | 0.83 | 0.83 | 0.84 | 0.83 | |
| Voltage accuracy | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% | |
| Noise level | |||||||
| Sound pressure level(Lpa) at 7m | dB(A) | 68 | 69 | 69 | 69 | 71 | 73 |
| Sound power level(Lwa) | dB(A) | 93 | 94 | 94 | 94 | 95 | 96 |
Powered by TAVAS high performance engine.
3000 hours engine service life under proper maintenance.
Nitrided crankshaft with lifetime guarantee.
Top grade bearings at crankshaft, camshaft and balanceshaft,
Maximize service life.
Maximize service life.
High-power pure copper starter motor ensures smooth electric start-up.
First class pure copper AC alternator.
Inductive generators specially designed for high impact appliances.
Electrical energy conversion efficiency up to 82-86%.
Advanced cold rolling process provides semi-permanent magnetic.
High temperature & overload protection.
Advanced design and structure
Electrical components with independent shock-absorbing brackets,
away from heat sources, extend the overall service life.
away from heat sources, extend the overall service life.
Extended exhaust pipe with additional silencing chamber,
extra emission reductionncatalyst can be added.
extra emission reductionncatalyst can be added.
Robust, vibration-proof chassis tray.
High-tech customization features
Comprehensive monitoring of generator status with more protection functions in LED controller.
Remote start, ATS, one-touch start,
emergency stop, The ultimate comfort & safe experience.
Pre-heating function specially for cold climates.
