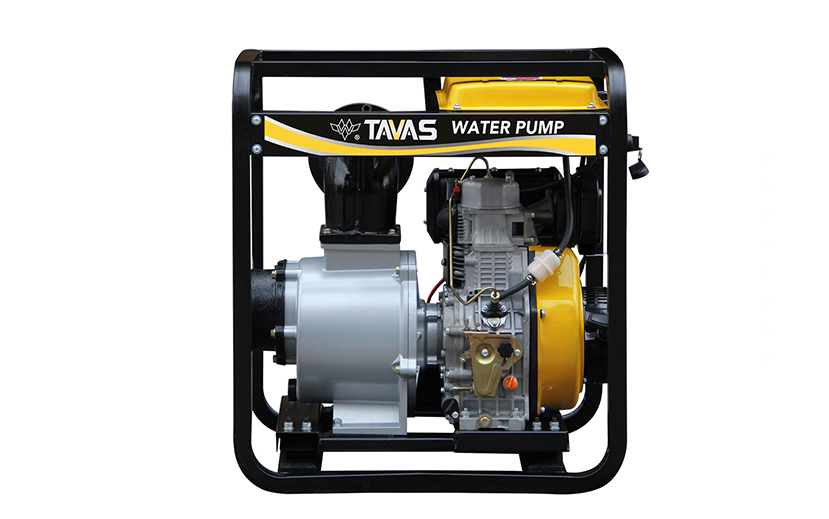

TAVAS Water Pump DP60(E)
DP60 (E)
The 6 inch diesel water pump has a huge flow rate, uses electric start and is equipped with a large 12.5L fuel tank to support its long operation. Custom wheels and handrails are available for customers with frequent movement needs
minimum order
30
Quantity
TAVAS Water Pump DP60(E)
The 6 inch diesel water pump has a huge flow rate, uses electric start and is equipped with a large 12.5L fuel tank to support its long operation.
Custom wheels and handrails are available for customers with frequent movement needs
| Technical data | |||||
| Pump data | DP20(E) | DP30(E) | DP40(E) | DP60(E) | |
| Type | Fresh water pump | ||||
| Suc.& discharge dia. | mm | 50(2'') | 80(3'') | 100(4'') | 150(6'') |
| Max. lift head | m | 26.0 | 28.0 | 31.0 | 15.0 |
| Suction lift | m | 8.0 | 8.0 | 8.0 | 6.0 |

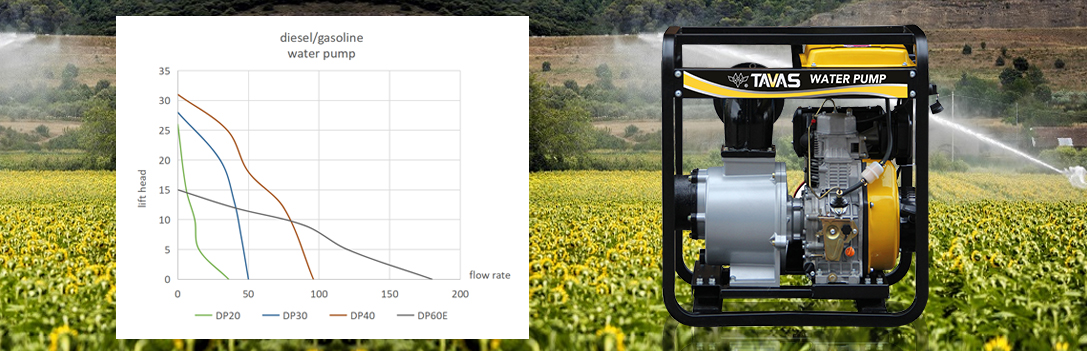

| Max. flow rate | Lpm | 36 | 50 | 96 | 180 |
| Engine data | |||||
| Model | 173F | 178F | 186FA | 192F | |
| Bore x stroke | mm | 73×59 | 78×62 | 86×72 | 92×75 |
| Displacement | cc | 246 | 296 | 418 | 498 |
| Nominal speed | rpm | 3600 | 3600 | 3600 | 3600 |
| Starting system | Manual or electric | Manual or electric | Manual or electric | Electric | |
| Lubrication system | Forced lubrication at multiple points | ||||
| Lubrication volume | L | 0.75 | 1.1 | 1.65 | 1.65 |
| Cooling system | Forced air-cooling by fly wheel fan | ||||
| Fuel tank capacity | L | 2.5 | 3.5 | 5.5 | 12.5 |
| Noise level | |||||
| Sound pressure level(Lpa) at 7m | dB(A) | 68 | 70 | 71 | 73 |
| Sound power level(Lwa) | dB(A) | 93 | 95 | 96 | 97 |
| Dimensions | |||||
| L×W×H | mm | 495×415×525 | 565×460×565 | 660×480×620 | 780×550×820 |
| Gross Weight | kg | 38 | 46 | 63 | 75 |
Fresh water pump
Silicon Carbide Mechanical seal, excellent thermal conductivity and resistance to oxidation at high temperatures.
Impeller dynamic balance adjustment for steady flow and power efficiency.
Anti-corrosion, thickened pump body with stiffeners
Powered by TAVAS high performance engine.
3000 hours engine service life under proper maintenance.
Nitrided crankshaft with lifetime guarantee.
Top grade bearings at crankshaft, camshaft and balanceshaft, Maximize service life.
Engines fully tested and cleaned before mounted on generators
